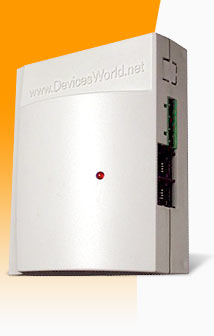

The iSCADA Gateway is an embedded Internet gateway and a data logger combined into a compact and rugged package. They  are self-contained, function independently without the need of any PCs at site, and come with an extensive range of Internet connectivity options.

Gateway:  1000 Series
The 10nn.1002 series is designed for exception-based monitoring. It has 10 volt-free contact inputs, 1 open collector and 1 normally open contact output. Internet connectivity to the iSCADA server is via a built-in PSTN modem or an external GSM modem. Legacy appliances can be monitored and managed remotely through the Internet by simply retrofitting this low cost device.

I/O expansion up to 160 inputs and 32 outputs is easily achieved by cascading additional Slave devices.

Ideally suited for applications like:-

  Building Facility Management
  Environmental Monitoring
  Monitoring of remote or unmanned assets                     » More

Gateway:  2000 Series
The 2nnn.1002 series is designed for remote data acquisition via the Internet. Each Gateway has 10 inputs, 8 of which are user-programmable to receive analogue or digital signals. The remaining 2 inputs accept digital inputs only. Remote control is possible with 2 sets of normally open contacts.

Analogue inputs can be 4-20mA or 0-5V while digital inputs can be volt-free contacts or 5VDC.

This series supports built-in PSTN, 10base-T Ethernet and external PSTN, GSM, GPRS, ACeS, WiFi, RF or VSAT connectivity.

Ideally suited for applications like:-

  Condition Monitoring
  Power Management, Trending
  Scientific and Industrial data acquisition                          » More
